| Technical specifications | |||
| Product Model | L35-05-MH | ||
| Rated Voltage Un | 500V | ||
| Rated Frequency fN | 50Hz/60Hz | ||
| Rated Current IL | 35A | ||
| Nominal Inductance Value LN | 5μH±10% | ||
| DC Resistance RCU Approximately | 4mΩ | ||
| Temperature Rise ΔT | 45K | ||
| Operating Temperature Range | ;-40°C to +70°C | ||
| Installation Conductor Cross-Section | 4mm²~16 mm² | ||
| Installation Method | 35mm Rail, in accordance with EN60715 | ||
| Enclosure Protection Rating | IP20 | ||

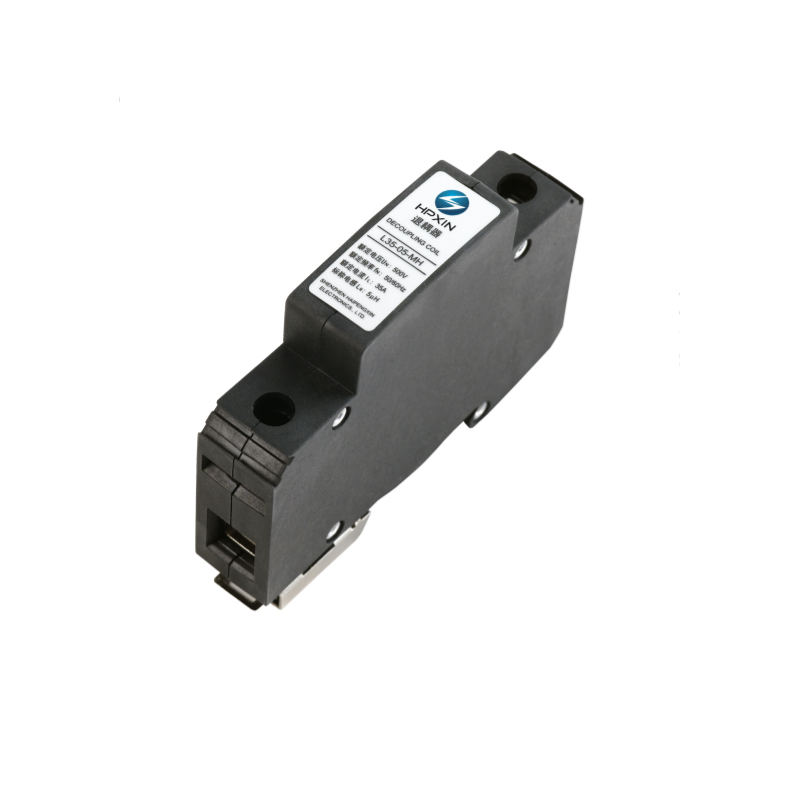

Power Supply Protection Decoupler
L35-05-MH
Application：The product is applied between two levels of surge protectors in power supply lines, replacing the required wire length with an inductor to achieve the optimal matching between the upper and lower level surge protectors. Functional performance：The product uses hollow inductors, which eliminate magnetic saturation issues and provide good decoupling， performance; it features a modular design with standard 35mm rail mounting for compact and convenient installation.
