Telecommunication Signal Network Surge Arresterr

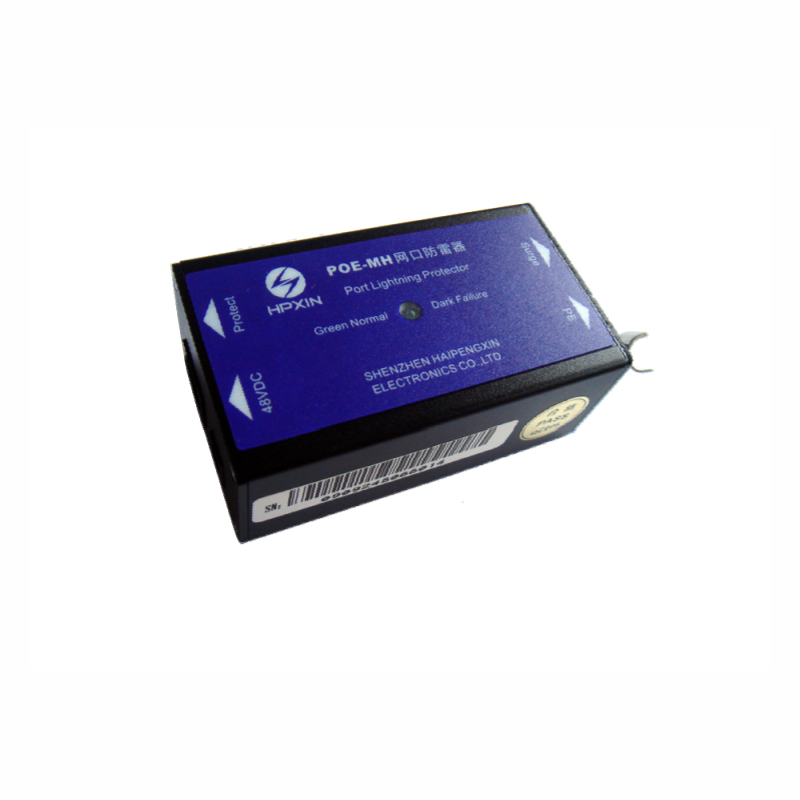

POE-MH

Application ：The POE-MH network port surge protector is designed for the protection of network devices powered by Category 5e Ethernet cables. It is suitable for installation at interfaces between Lightning Protection Zones (LPZ1-LPZ3), featuring dual-stage protection to ensure network devices are safeguarded against damage caused by overvoltage and overcurrent resulting from lightning strikes and industrial interference. Functional performance ：This network port surge protector features dual-stage protection functionality, ensuring network equipment is safeguarded against damage caused by overvoltage and overcurrent resulting from lightning strikes and industrial interference. It is widely applied for lightning protection in wireless bridge devices.

Technical Parameters
Product Model		POE-MH
Signal Interface	Rated Operating Voltage	1.4V
	Maximum Operating Voltage	3.0V
	Nominal Trigger Voltage	Line-to-Line	≥3.6V
		Line-to-Ground	90V+20%
	Nominal Surge Current – In (8/20μs)	2.5kA
	Voltage Protection Level – Up (8/20μs 2.5kA)	Line-to-Line	≤15V
		Line-to-Ground	≤300V
Power Interface	Rated Operating Voltage	48V
	Rated Operating Current	2A
	Maximum Operating Voltage	60V
	Nominal Trigger Voltage (Line-to-Line, Line-to-Ground)	100V+10%
	Nominal Surge Current – In (8/20μs)	5kA
	Voltage Protection Level – Up (8/20μs 3.0kA)	Line-to-Line	≤150V
		Line-to-Ground	≤300V
Flammability Rating		UL94V-0
Operating Indicator Light		Light on: Normal ; Light Off: Fault
Maximum Weight		160G
