| Technical specifications | |||
| Product Model ： | L63-05-MH | ||
| Rated Voltage Un | 500V | ||
| Rated Frequency fN | 50Hz/60Hz | ||
| Rated Current IL | 63A | ||
| Nominal Inductance Value LN | 5μH±10% | ||
| DC Resistance RCU Approximately | 2mΩ | ||
| Temperature Rise ΔT | 45K | ||
| Operating Temperature Range | ;-40°C to +70°C | ||
| Installation Conductor Cross-Section | 4mm²~25mm² | ||
| Installation Bracket | 35mm Rail, in accordance with EN60715 | ||
| Enclosure Protection Rating | IP20 | ||
| External dimensions | 90mm × 30mm × 65mm | ||

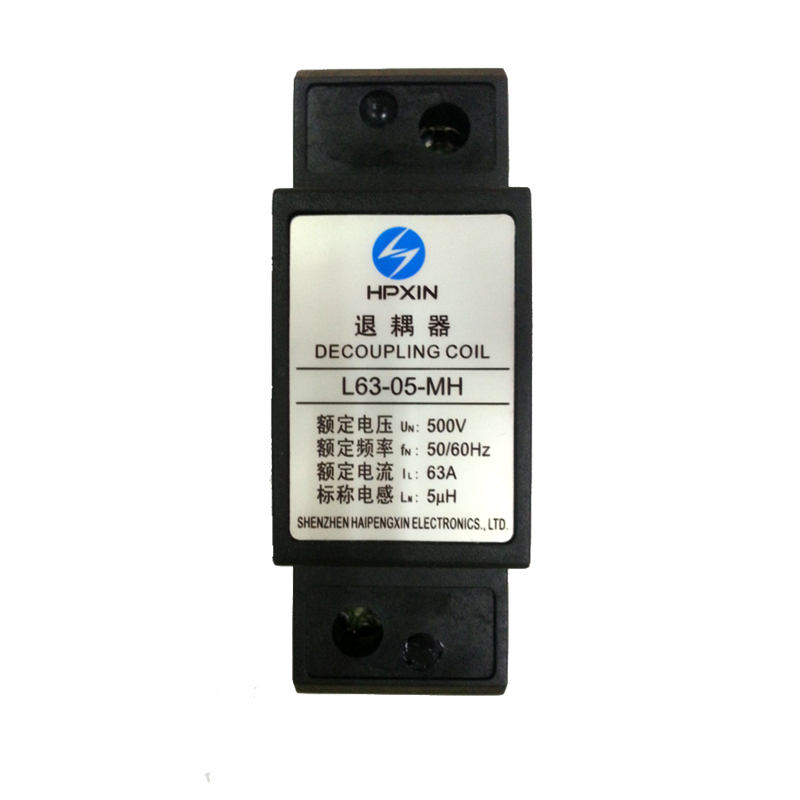

Power Supply Protection Decoupler
L63-05-MH
Application: The product is applied between two levels of surge protectors in power supply lines, The product is applied between two levels of surge protectors in power supply lines, between the upper and lower level surge protectors. Functional performance: The product uses hollow inductors, which eliminate magnetic saturation issues and provide good decoupling performance; it features a modular design with standard 35mm rail mounting, offering a compact size for easy installation.
