M1L385-40Ⅱ（4P）

Application：This surge protector is primarily applied for surge protection against lightning or other transient overvoltages in low-voltage power supply TN-S systems. Functional performance ：The product is equipped with built-in overheat and overcurrent protection functions, providing Class C (Type II classification test) surge protection for low-voltage power distribution systems and electrical equipment. It adopts a 35-millimeter DIN rail mounting method, with the surge protection module being replaceable independently，for convenient installation and maintenance. The product is also fitted with a remote signaling alarm interface (dry contact) to facilitate remote monitoring of the surge protector status.
SEND INQUIRY NOW
Technical specifications
Product Model M1L385-40Ⅱ (4P)
Rated Voltage Un  230VAC
Maximum Continuous Operating Voltage – Uc 385VAC
Nominal Discharge Current – In (8/20μs)  20kA
Maximum Discharge Current – Imax (8/20μs) 40kA
Voltage Protection Level – Up (In) 1.8KV
Transient Overvoltage Characteristic UTOV 400V/5sec
Withstand Short-Circuit Current 25kArms
Front-Fuse 125AgL
Terminal Wiring Range  1.5 mm² ~25mm² (Flexible)/35mm² (Rigid)
Alarm Port Maximum Operating Current 250V/0.5A (AC) 0.1A (DC); 125V/1A (AC) 0.5A (DC)
Enclosure Flame Retardant Rating UL94 V-0
Enclosure Protection Rating IP20

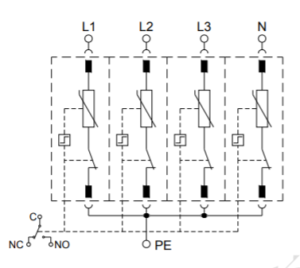

Principle of Protection
