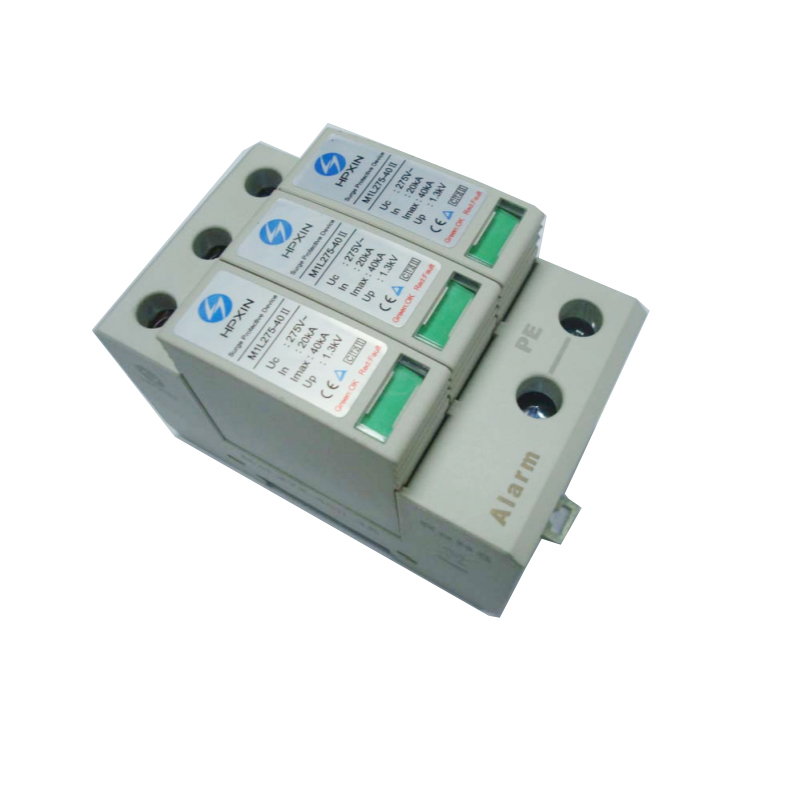

Power Surge Arresterr

M3L275-40Ⅱ-3A

1.Application This electrical surge protective device is mainly used for surge voltage protection against transient overvoltage in low-voltage power supply systems and electrical equipment.
2.Functional performance The product has built-in over-temperature protection, which can provide C (II) level protection for low-voltage power supply systems and electrical equipment. It adopts 35mm DIN rail installation, is compact and easy to install and replace, and has good through-current capability and high reliability.

3.Technical specifications

Item	Specification
Product Model	M3L275-40II -3A
Rated Voltage Un	110V~220V AC
Maximum Continuous Operating Voltage Uc	275V AC
Nominal Discharge Current In (8/20μs)	20kA
Maximum Discharge Current Imax (8/20μs)	40kA
Voltage Protection Level Up (In)	1.3kV
Front Fuses	125A gL
Withstand Short-Circuit Current	25kA rms
Terminal Wiring Range	1.5 mm²~25mm² (Flexible)/35mm² (Rigid)
Alarm Port Rated Operating Current	250V/0.5A (AC) 0.1A (DC) 125V 1A (AC) 0.5A (DC)
Enclosure Flame Retardant Rating	UL94 V-0
Enclosure Protection Rating	IP20

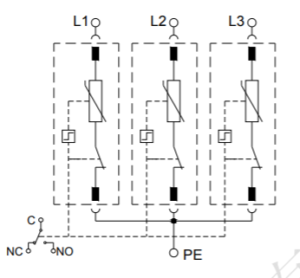

4. Principle of Protection
