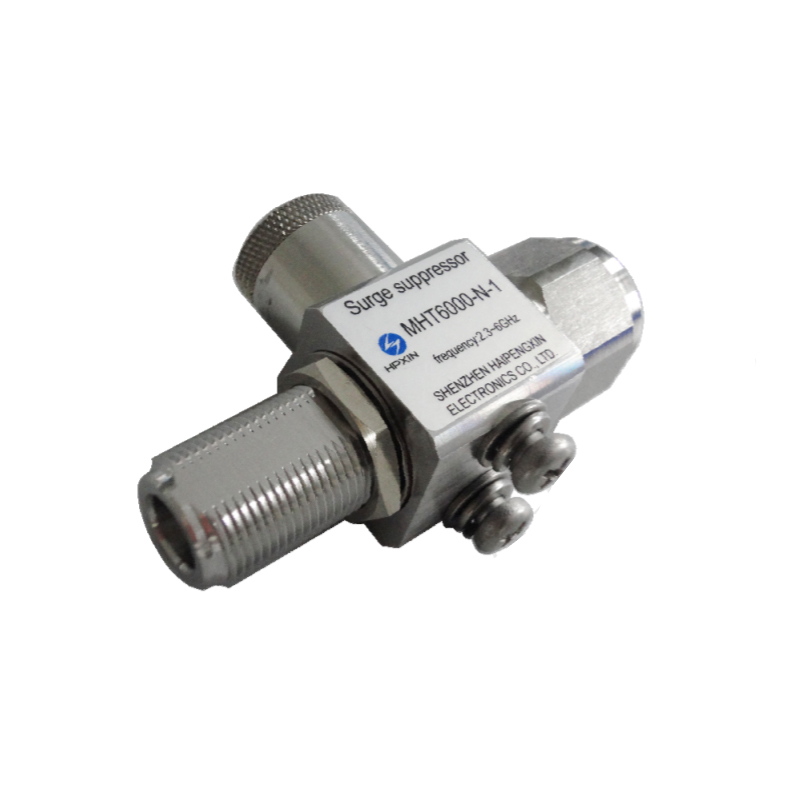

Telecommunication Signal Network Surge Arresterr

MHT6000-N-1

Application：This product is primarily used for WLAN and WIMAX systems to protect them from damage caused by overvoltages such as use.induced lightning strikes introduced through antennas. It features waterproof functionality and is suitable for outdoor. Functional performance : This product is used in mobile communication system base stations operating in the 2.3~6.0GHz frequency band to protect them from overvoltage damage caused by induced lightning strikes introduced through antennas.

Technical Parameters
Product Model	MHT6000-N-1
Transmission Frequency	2.3~6.0GHz
Nominal Discharge Current	10kA, 8/20μs
Maximum Discharge Current	20kA, 8/20μs
Voltage Protection Level	≤20V (8/20μs, 10kA)
	≤50V (1.2/50μs, 4kV)
Maximum Power Input	100W
Voltage Standing Wave Ratio	VSWR ≤1.10 (Typical)
Insertion Loss	Insertion Loss ≤0.1dB (Typical)
Port Model	N(F/M)-502
Waterproof Rating	IP67

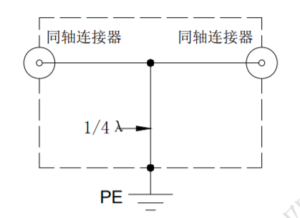

Principle of Protection
