Telecommunication Signal Network Surge Arresterr

X5C-12

1.Product Description This product is primarily used for surge voltage protection of data buses and industrial control signal lines that employ four-wire shared floating ground transmission. It adopts a two-stage protection scheme (coarse and fine), featuring low residual voltage. The protection safeguards transmitters and receivers from damage caused by induced lightning or other transient overvoltages introduced through the signal lines.

2.Technical Parameters

Item	Specification
Product Model	X5C-12
Rated Operating Voltage	12VDC
Maximum Operating Voltage	14.5VDC
Peak Surge Current	450mA
Nominal Discharge Current	5kA (8/20μs)
Maximum Discharge Current	10kA (8/20μs)
Voltage Protection Level	Differential Mode	25V (8/20μs, 5kA)
Voltage Protection Level	Common Mode	500V (8/20μs, 5kA)
Maximum Transmission Power (Rate)	10Mbps
Insertion Loss	<0.5dB
Series Resistance	2.22Ω
Port Wiring Capacity (Flexible Cable)	28~12AWG (Stranded wire)
Enclosure Flame Retardant Rating	UL94 V-0
Maximum Weight	90g

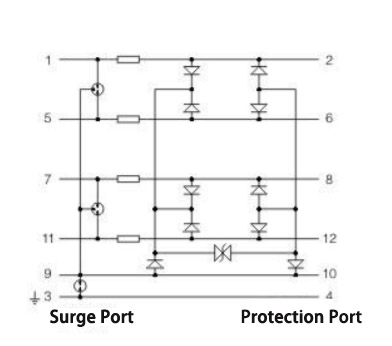

3.Principle of Protection
